EB-25.6V-200Ah-KS21 5.12kWh بطارية تخزين طاقة LiFePO4
EB-25.6V-200Ah-KS21, a 5.12kWh بطارية تخزين طاقة LiFePO4 supplied through our partner network; final configuration and delivery are confirmed per project.

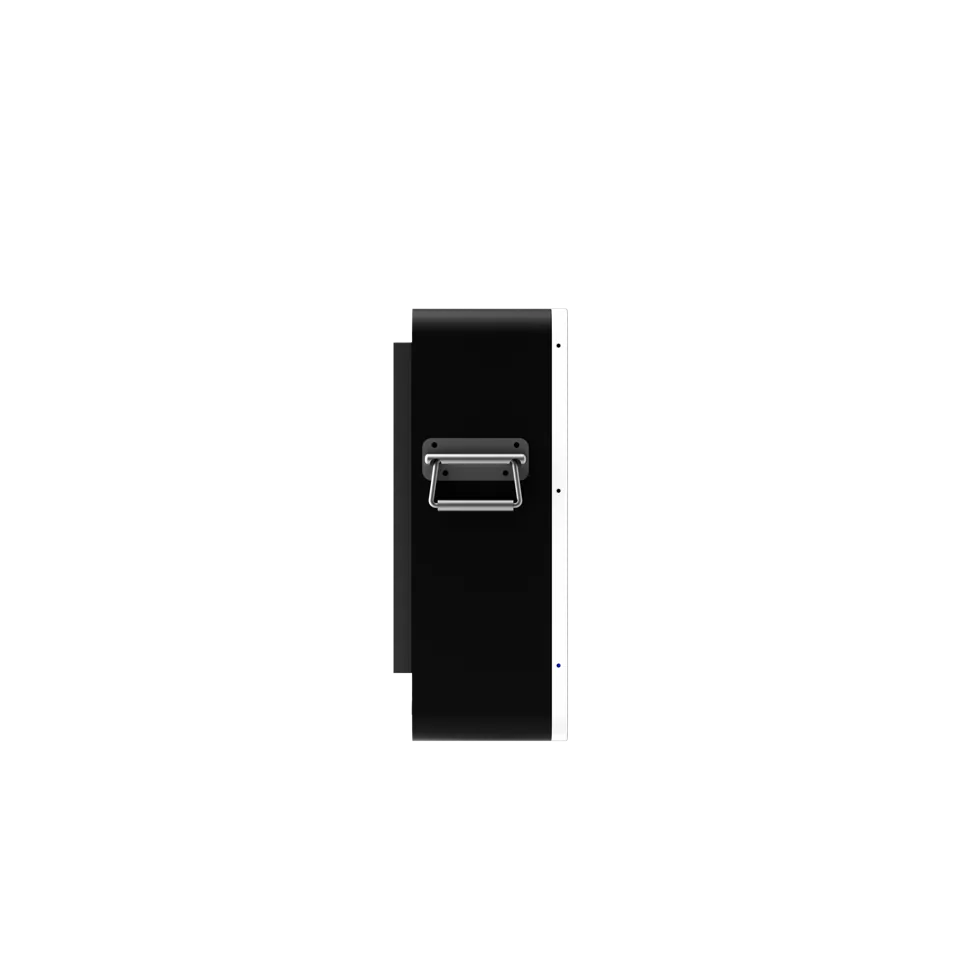

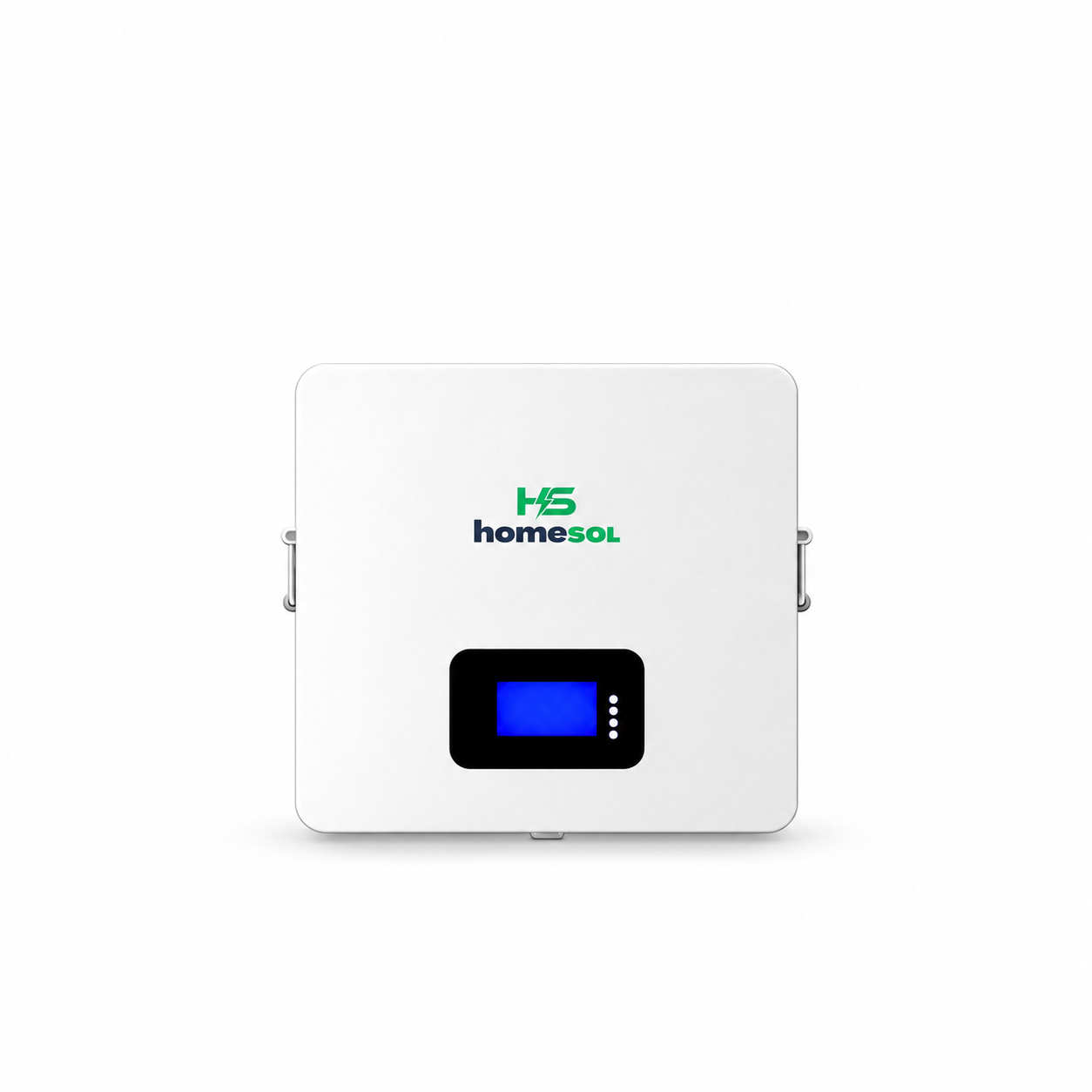

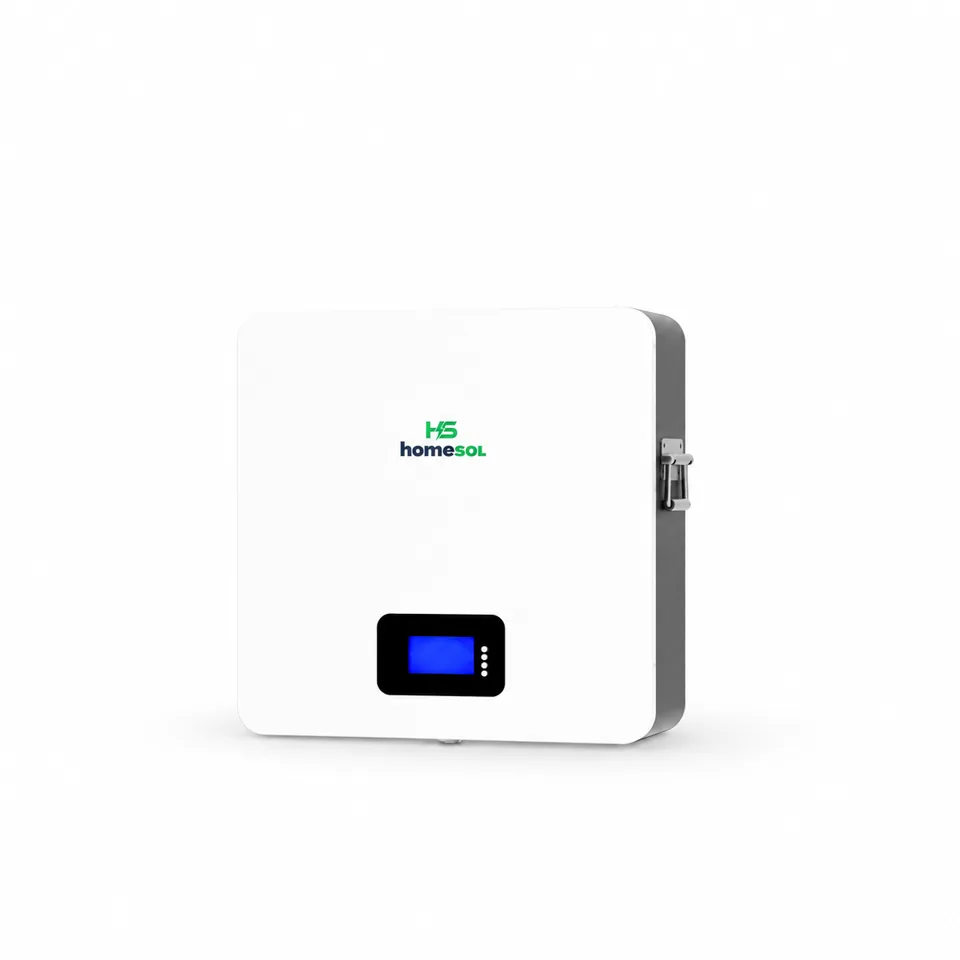

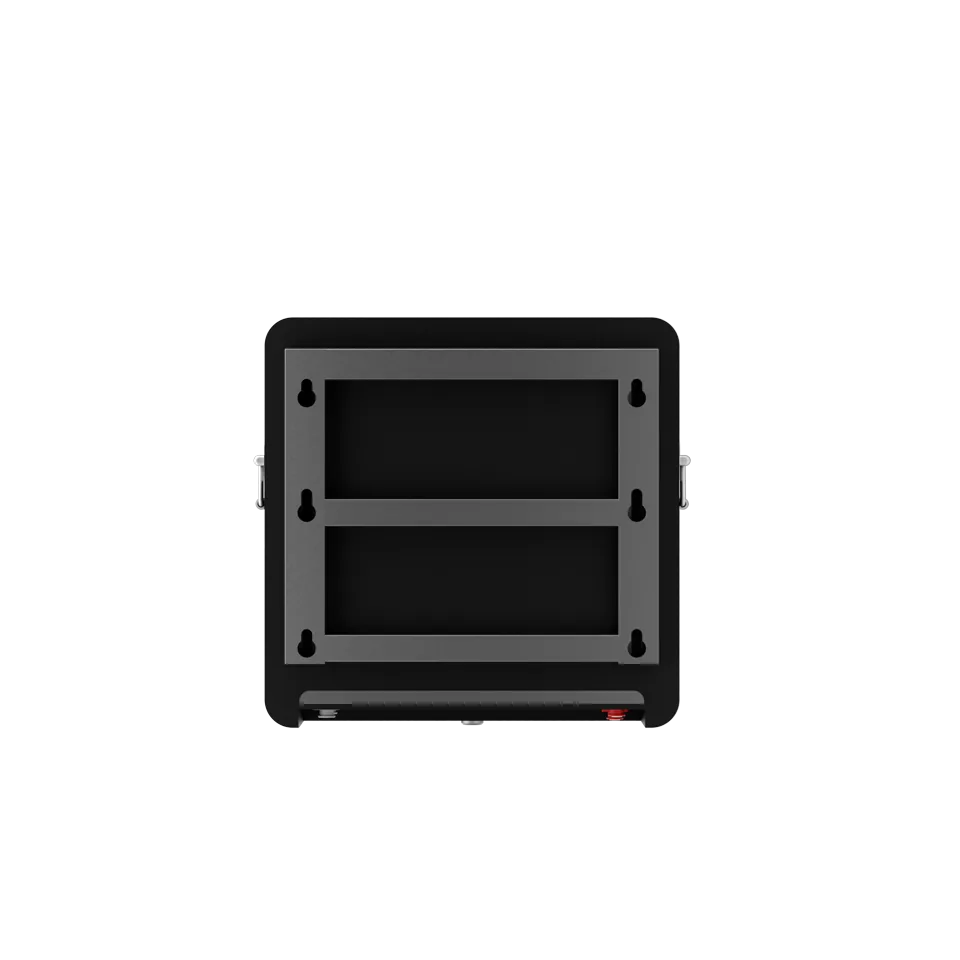

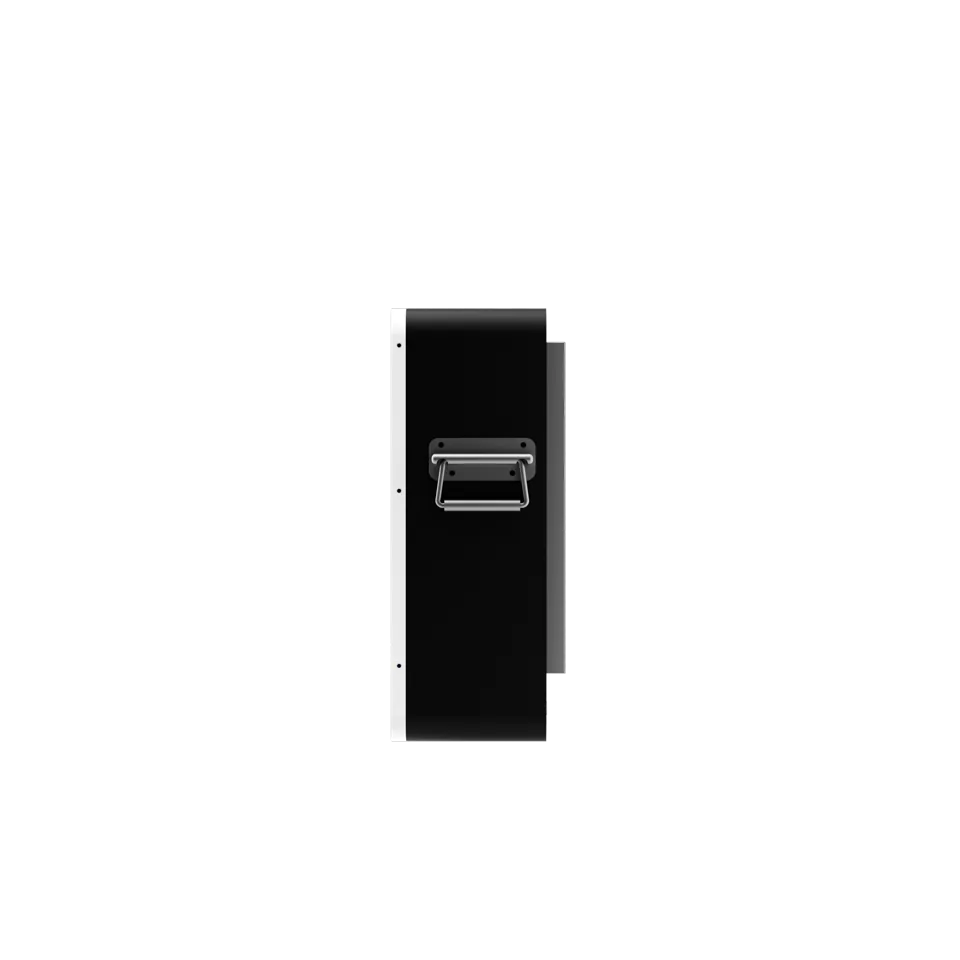

صور المنتج وهيكله
Switch between the front, side, rear-mounting and structural views in one image frame; click the main image to zoom.
LiFePO4 energy storage for homes and smaller projects.
Suitable for matching with compatible energy-storage systems. We help confirm voltage platform, capacity requirement, communication, installation space and delivery schedule.
This model is offered as a Homesol partner-supplied product and is not presented as Chuangma-owned manufacturing.
EB-25.6V-200Ah-KS21 · 5.12kWh
المواصفات المرجعية للطراز
جُمعت القيم الثابتة أدناه من مواد منتج تمت مراجعتها. يتم تأكيد التكوين النهائي والتوافق والتسليم لكل مشروع.
This model is offered as a Homesol partner-supplied product and is not presented as Chuangma-owned manufacturing.
مرر جانبياً لعرض جميع المواصفات
| المعلمة | القيمة | الحالة |
|---|---|---|
| Nominal voltage / capacity | 25.6VDC / 200Ah | تمت المراجعة |
| Nominal energy | 5.12kWh | تمت المراجعة |
| Voltage range | 22.4–29.2VDC | مرجعي |
| Rated / peak charge-discharge current | 100A / 200A | مرجعي |
| Communication | RS485 / RS232 / CAN; Wi-Fi / Bluetooth | مرجعي |
| Cycle life | 6,000 cycles (25°C, 0.5C, 80% DOD) | مرجعي |
| Enclosure / installation | IP21 / wall-mounted | مرجعي |
| Dimensions / weight | 450 × 455 × 181 mm / 45 kg | مرجعي |
| Certification | UN38.3 | مرجعي |
قبل طلب عرض السعر, please confirm the following.
Inverter or system voltage platform
Required usable capacity and quantity
Installation space, environment and delivery target
