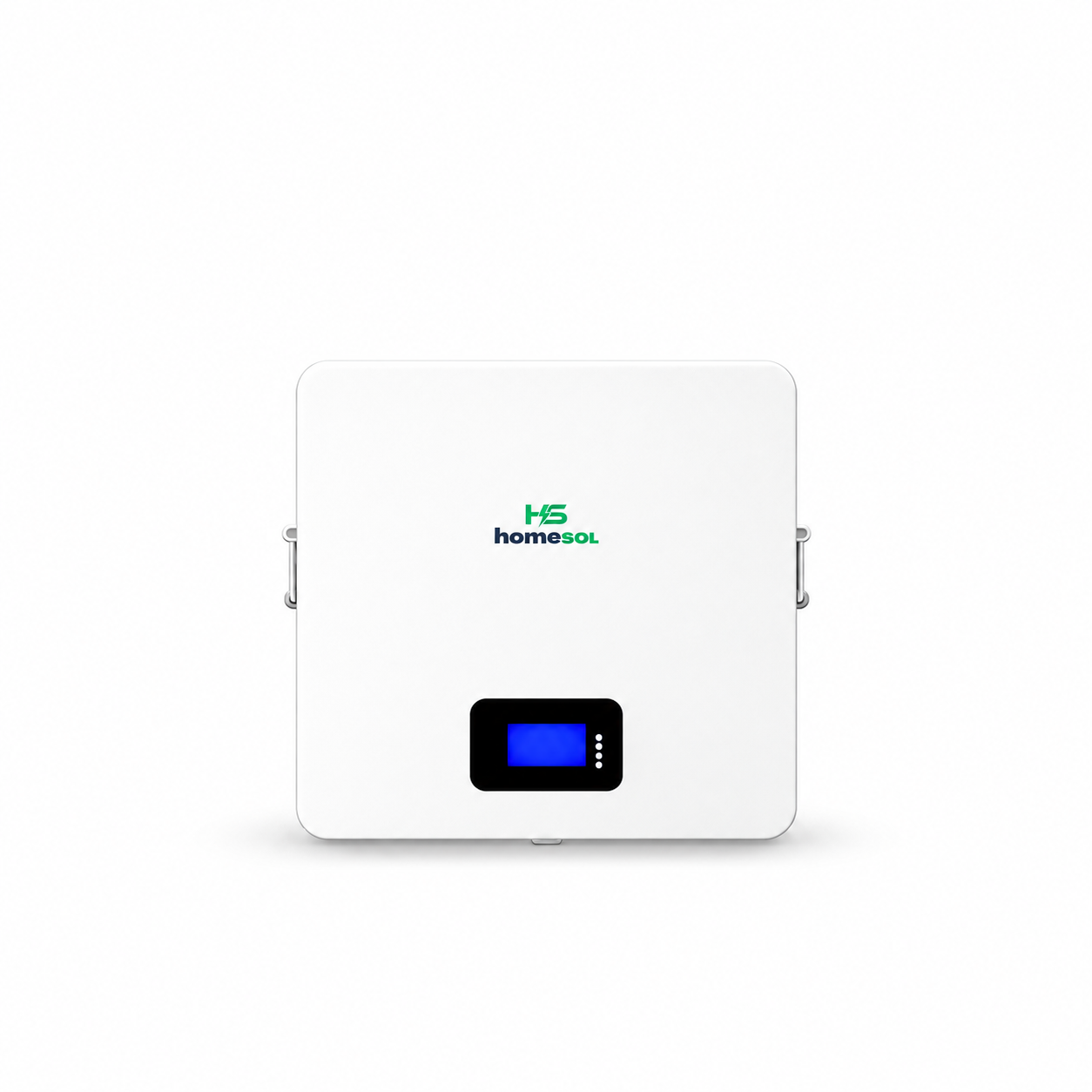

EB-51.2V-100Ah-KS21 5.12kWh Batería de almacenamiento de energía LiFePO4
EB-51.2V-100Ah-KS21, a 5.12kWh batería de almacenamiento de energía LiFePO4 supplied through our partner network; final configuration and delivery are confirmed per project.

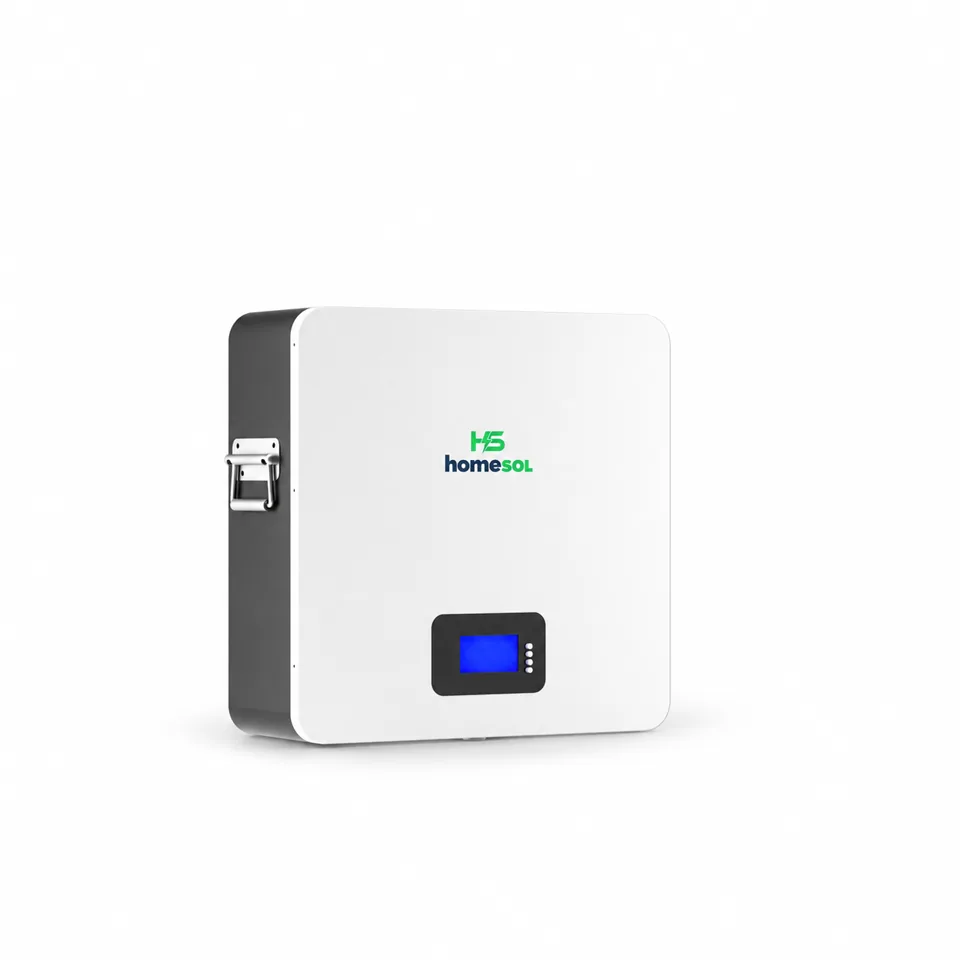

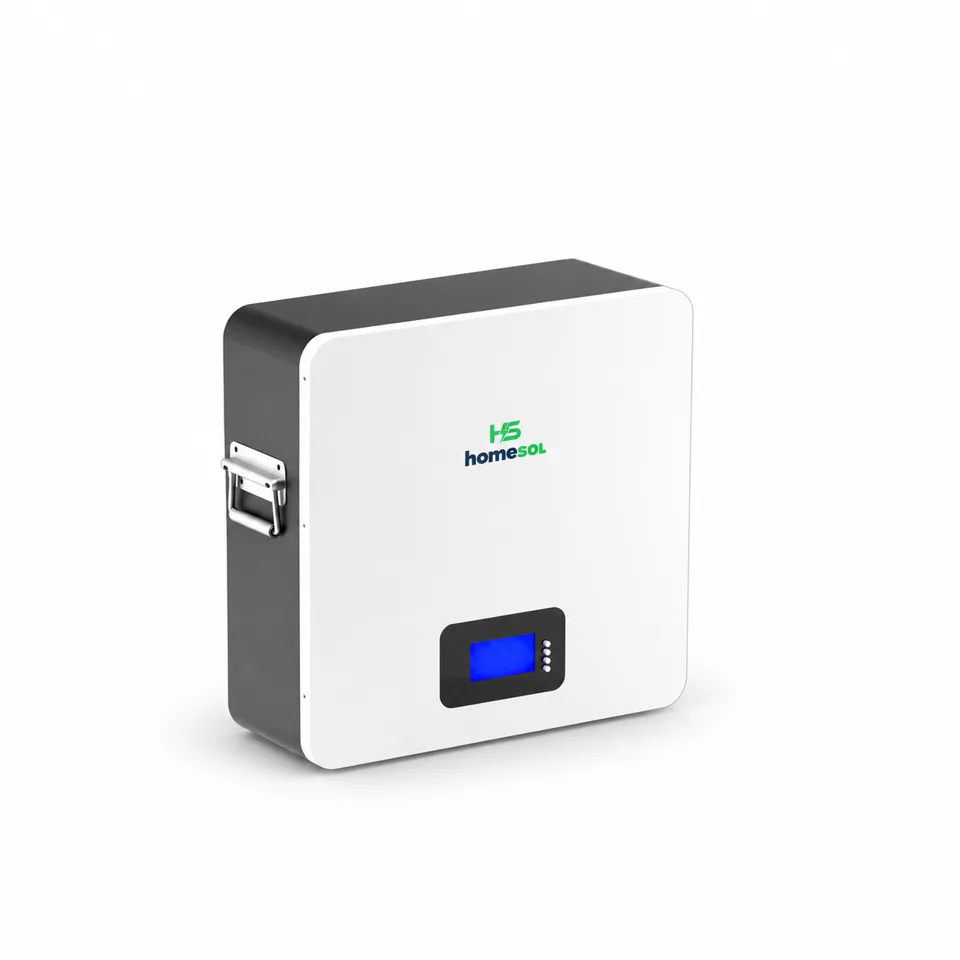

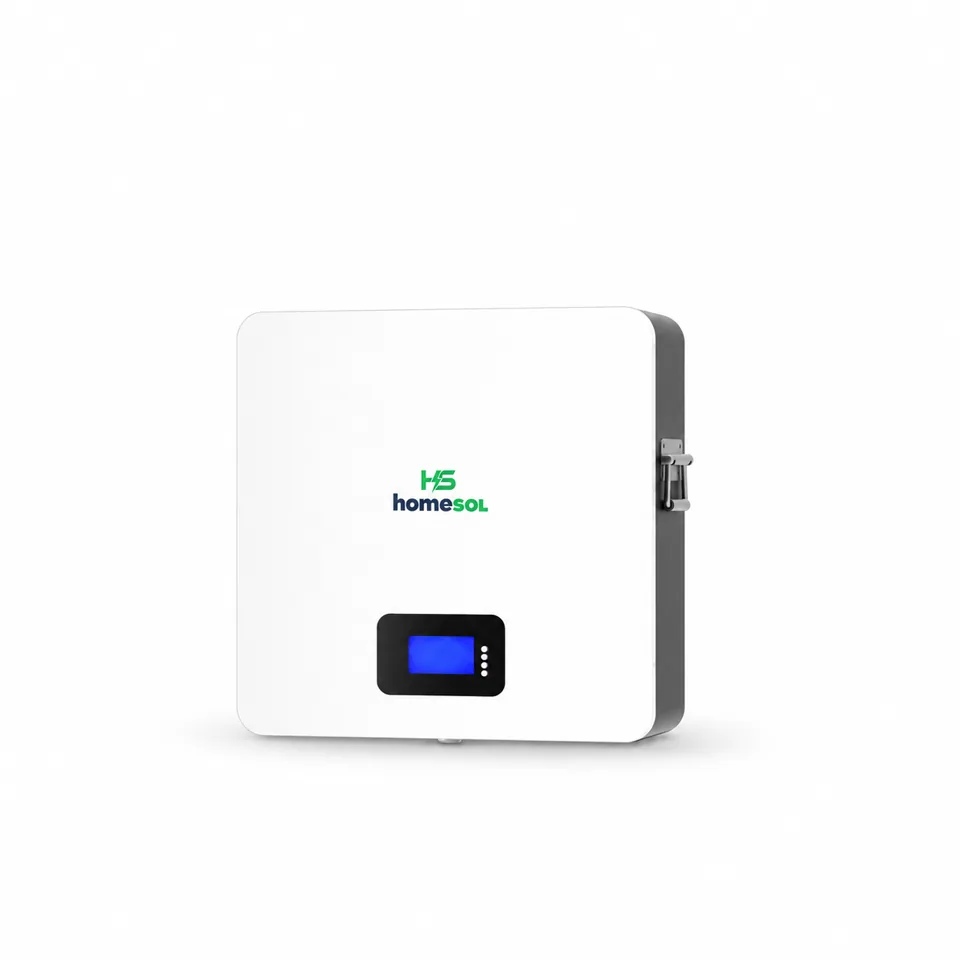

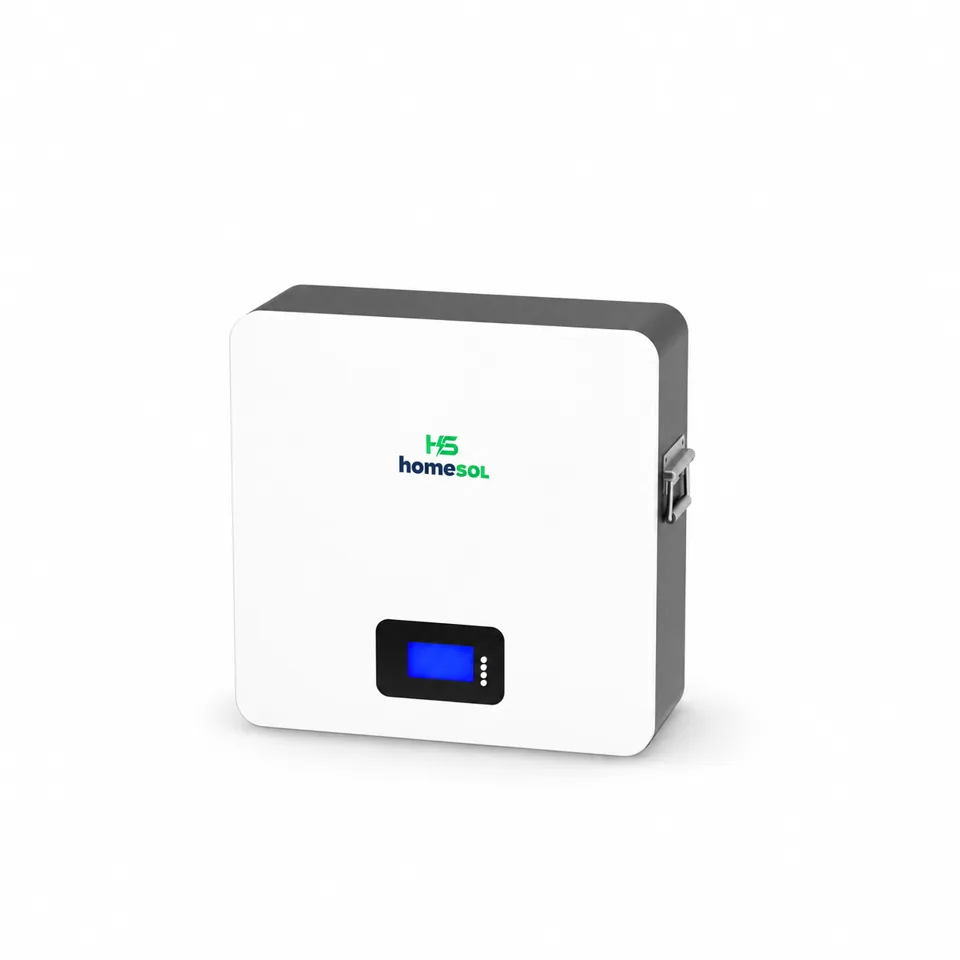

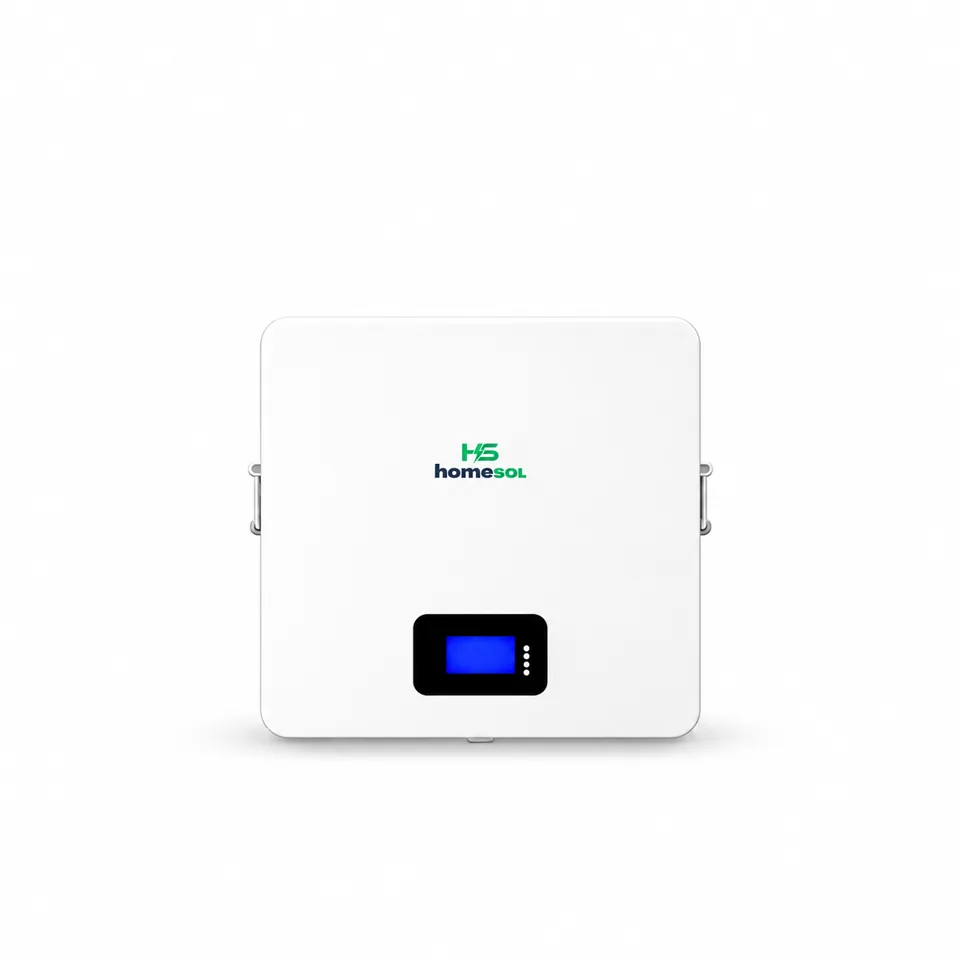

Vistas y estructura del producto
Switch between the front, side, rear-mounting and structural views in one image frame; click the main image to zoom.
LiFePO4 energy storage for homes and smaller projects.
Suitable for matching with compatible energy-storage systems. We help confirm voltage platform, capacity requirement, communication, installation space and delivery schedule.
This model is offered as a Homesol partner-supplied product and is not presented as Chuangma-owned manufacturing.
EB-51.2V-100Ah-KS21 · 5.12kWh
Especificaciones de referencia del modelo
Los valores fijos se han recopilado de documentación de producto revisada. La configuración final, la compatibilidad y la entrega se confirman para cada proyecto.
This model is offered as a Homesol partner-supplied product and is not presented as Chuangma-owned manufacturing.
Deslice horizontalmente para ver todas las especificaciones
| Parámetro | Valor | Estado |
|---|---|---|
| Nominal voltage / capacity | 51.2VDC / 100Ah | Revisado |
| Nominal energy | 5.12kWh | Revisado |
| Voltage range | 44.8–58.4VDC | Referencia |
| Rated / peak charge-discharge current | 50A / 100A | Referencia |
| Communication | RS485 / RS232 / CAN; Wi-Fi / Bluetooth | Referencia |
| Cycle life | 6,000 cycles (25°C, 0.5C, 80% DOD) | Referencia |
| Enclosure / installation | IP21 / wall-mounted | Referencia |
| Dimensions / weight | 450 × 455 × 181 mm / 45 kg | Referencia |
| Certification | UN38.3 | Referencia |
Antes de solicitar un presupuesto, please confirm the following.
Inverter or system voltage platform
Required usable capacity and quantity
Installation space, environment and delivery target
